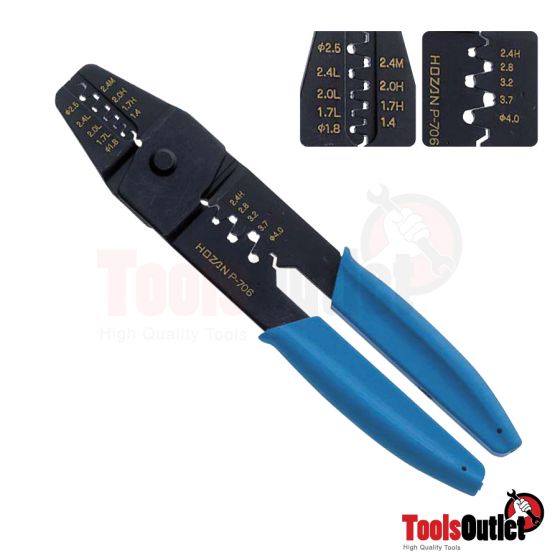

CRIMPING TOOL คีมย้ำสายไฟ HOZAN รุ่น P-706
- Ideal for crimping small contact pin.
- Wire sizes: AWG#28 to #14
- Weight: 200 g
| Nominal sizes | Die width (mm) | Crimp height (mm) | Compatible wire sizes | Insulation OD (mm Ø) | ||
| AWG# | mm² | |||||
| For conductor | 1.4 | 1.4 | 0.7 | 28 to 24 | 0.8 to 0.2 | 0.7 to 1.2 |
| 1.7L | 1.7 | 28 to 22 | 0.08 to 0.3 | 0.9 to 1.5 | ||
| 1.7H | 1.1 | 28 to 18 | 0.2 to 0.8 | 0.9 to 1.5 | ||
| 2.0L | 2.0 | 0.9 | 28 to 18 | 0.08 to 0.8 | 1.1 to 1.8 | |
| 2.0H | 1.3 | 24 to 18 | 0.2 to 0.8 | 1.1 to 1.8 | ||
| 2.4L | 2.4 | 1.2 | 20 to 16 | 0.5 to 1.25 | 1.3 to 2.2 | |
| 2.4M | 1.5 | 16 to 14 | 1.25 to 2.0 | 1.3 to 2.2 | ||
| Nominal sizes | Die width (mm) | Crimp height (mm) |
Insulation OD(mm Ø) |
|
| For insulation | 2.4H | 2.4 | 2.4 | 1.3 to 2.2 |
| 2.8 | 2.8 | 2.8 | 1.6 to 2.6 | |
| 3.2 | 3.2 | 3.2 | 1.8 to 3.0 | |
| 3.7 | 3.7 | 3.7 | 2.1 to 3.5 | |
|
For insulation (for round crimps) |
Ø 1.8 | 1.8 | 1.8 | 1.2 to 3.5 |
| Ø 2.5 | 2.5 | 2.5 | 1.8 to 2.5 | |
| Ø 4.0 | 4.0 | 4.0 | 2.3 to 3.8 |
